Trim Removal and Vacuum Transfer Air Dust Collection

Trim removal and vacuum transfer air dust collection is a single engineered chain, not two separate purchases. Every converting line makes waste at the point of cut, and ERS builds the whole chain that carries it away: pick-up at the machine, air dust collection across the plant, scrap collection and separation feeding the baler, and filtration at the end of the system. ERS does not supply one component into somebody else's line. We design, build, install and service the whole system as a single engineered installation, and we take responsibility for it working as one.

Size Reduction at the Front of the System

Not everything arriving is trim. Boxes, sheets, damaged stock and offcuts come off the line whole, and they cannot be conveyed in that state. A cardboard shredder at the front reduces them to a size the air system can move, so they join the same line instead of being broken down by hand or carried to a skip.

Where cores are part of the stream, a paper core shredder does the same job for them.

Trim Removal at the Die Cutter, Printer and Slitter

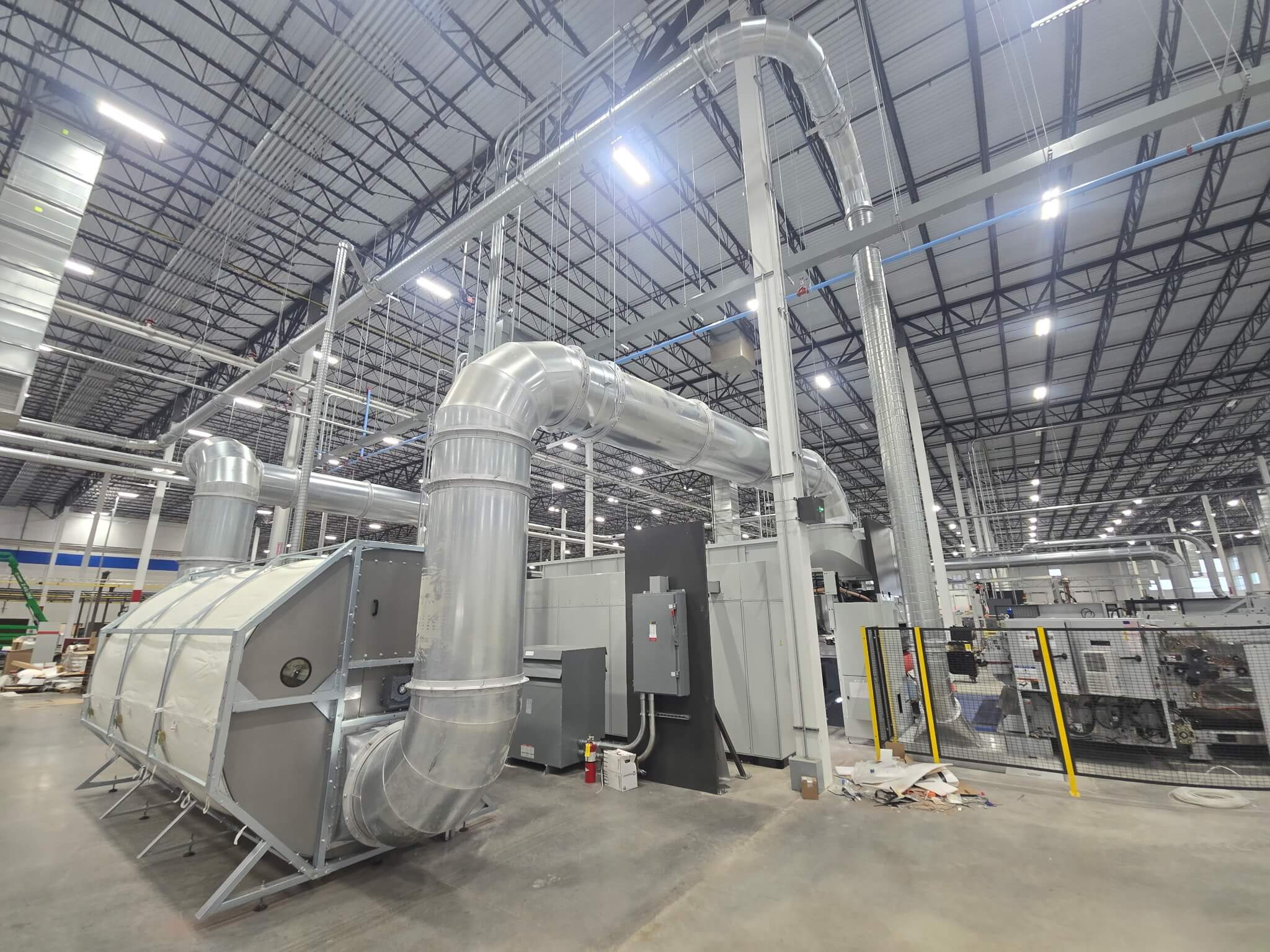

Edge trim, die-cut waste and production scrap are picked up at the moment they are created, before they can wrap a roll, block a chute or stop a line. ERS sizes the hoods, ducting and pick-up velocity around the machine that is actually installed, not around a catalog average. On rotary die cutters the waste is light, fast and awkward; on slitting and rewinding lines it is thin, fast and continuous. Both need a different approach, and both are engineered the same way: around the real line speed, the real substrate and the real building.

Where headroom is tight, the low profile separator does the same job in a fraction of the height, which keeps a retrofit inside an existing mezzanine instead of forcing a structural change.

Vacuum Transfer Air Dust Collection

Once waste is moving, the air moving it has to be cleaned. ERS builds vacuum transfer air dust collection — the dust collection on the air coming off the transfer system. This is where most converting plants lose performance: the conveying works, the air handling does not, and the plant slowly fills with fiber and fine paper dust. ERS sizes the vacuum transfer air dust collection to the duty of the whole plant, so pick-up stays stable when every station runs at once rather than only when the line is half loaded.

Scrap Collection, Separation and Baling

Material and air are separated before the material reaches the baler. Cyclone separators drop trim and scrap out of the airstream cleanly, and the material is fed straight into the baling line. ERS supplies and integrates the industrial balers as part of the same system, so the plant ends up with a finished bale and a clean building, not a pile of loose trim and a second contractor to call.

Briquetting the Fines a Baler Cannot Take

A baler handles trim. It does not handle the fine dust that comes with it, and that fraction still has to go somewhere. A briquette press sits under the collection system and compacts those fines into solid briquettes with no binder, so the dust leaves the building as a stackable product rather than as loose material in an open container.

On the converting side this is usually paper dust and fines from slitting, die cutting and sheeting. The press is sized to what the filter and cyclone actually discharge, which is why ERS specifies it with the collection rather than after it.

Filtration and the CCM^® OCT Filter

At the end of the system the air is filtered and returned or exhausted. The CCM^® OCT filter cleans itself while the plant keeps running. A single gear motor sits outside the filter, out of the dust, and turns the central shaft and the boom. The nozzle traverse takes its motion from that rotation mechanically, so nothing electrical moves inside the drum and no compressed air is needed for cleaning. Scrapers turn with the shaft and wipe dust off the rings back onto the media. Filter media changes are tool-free and take roughly four to six minutes per panel.

For plants running conventional equipment, ERS also engineers dust collection systems for paper converting and dust collection for paper, tissue and hygiene production around the filtration already on site.

Centralized Systems for Multi-Line Plants

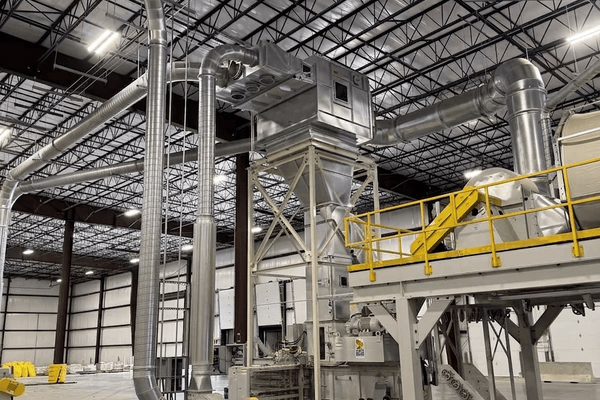

A plant running several lines does not want several systems. ERS designs turnkey waste conveyance and dust collection systems that bring trim, scrap and dust from every station into one engineered waste stream, with outside-building collection where the site allows it. That means one set of controls, one maintenance routine and one point of contact, and it keeps the production floor clear for production.

The Industries ERS Builds For

The chain is the same; the duty is not. ERS engineers systems for corrugated box plants, folding carton converting, paperboard production, paper converting, commercial printing, direct mail manufacturing, flexible packaging, label converting, tissue converting and paper mills. A high-speed flexo folder gluer and a log saw produce very different waste, and the system is sized for the one in front of it.

The full equipment range behind these installations is set out on the paper converting systems page.

Service, Spare Parts and Long-Term Support

A waste system is only worth what it does in year five. ERS keeps a stocked warehouse and supports every installation it builds, from commissioning through to spare parts and service. Wear parts, filter media and fan components are available without a lead time measured in months, which is the difference between a scheduled change and an unplanned stop.

Next Steps for Your Trim Removal Project

If you are evaluating a trim removal and vacuum transfer air dust collection system, planning an upgrade to an existing line, or adding capacity to a plant that is already tight on air, ERS will look at the line, the building and the duty and come back with an engineered answer. Send the details through the contact form and we will take it from there.
