ASR and Car Fluff Compact Lines That Recover the Metal in the Fluff
ASR and car fluff recycling systems recover the aluminum, copper and other non-ferrous metal still sitting in automotive shredder residue after the shredder has taken the steel. ERS builds them as compact modular lines rather than large fixed installations, sorting the stream mechanically at every stage. ERS also builds ASR fines processing systems for the finer fraction a main line will not catch, so the whole stream is covered rather than part of it. Engineered Recycling Systems designs, installs and supports all of it from Atlanta.
What is actually in car fluff
ASR is what leaves an automobile shredder once the ferrous fraction has been pulled off: foam, textile, rubber, glass, wiring, plastic : and non-ferrous metal, in pieces small enough and mixed enough that a primary line was never going to catch them.
The metal content varies by feed and by how the shredder is run, which is why no two ASR projects start from the same number. It is also why the first step is measuring it rather than estimating it.
Vehicle construction has moved too. More aluminum in body panels and more copper in wiring harnesses means the fluff coming off a shredder today is not the fluff of fifteen years ago, and a plant working from old assumptions is underestimating what it is burying.
Why it has been landfilled
Historically because the recovery equipment was large, expensive and justified only at very high volumes. A plant producing a moderate ASR stream had no economic route, so the fluff went to landfill with the metal still in it.
Two things changed. Landfill became more expensive and harder to permit, and aluminum and copper prices made the recoverable fraction worth chasing. Compact lines exist because the economics finally reach plants that are not the largest in the country.

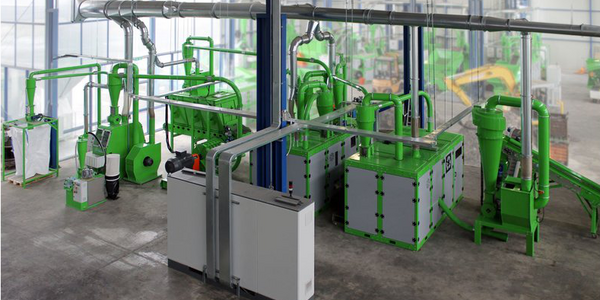

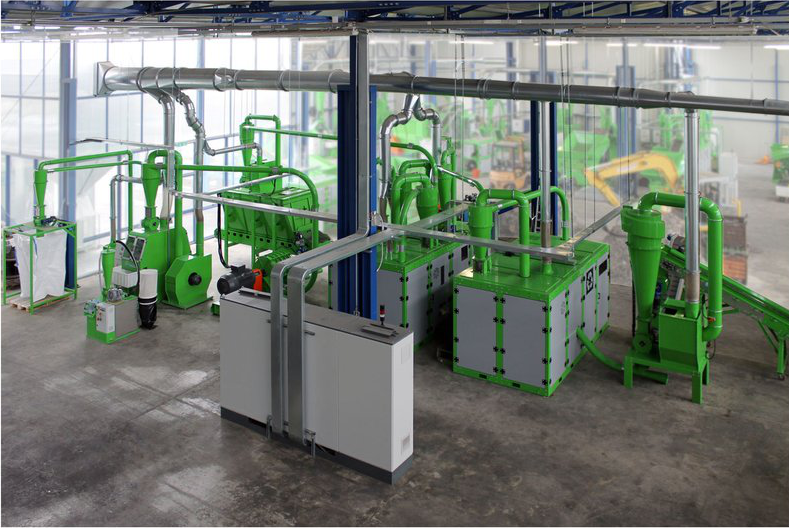

How ERS sorts and separates it
Feed stabilization first : ASR arrives inconsistent, and a sorting stage fed inconsistently produces inconsistent output. Then controlled particle size reduction, so composites are liberated rather than just moved along.
After that the stream is sorted mechanically, stage by stage: precise airflow control to take the light fluff out, magnetic separation for residual ferrous, and eddy current separation for the non-ferrous metals. Dry separation tables make the final density split where purity has to be high. Sorting a mixed stream into fractions a buyer will pay for is what every ERS recycling system is built to do.
Compact and modular, on purpose
These lines are built to fit buildings that were not designed for them. Modular layouts mean a plant can install what it can justify now and add stages later without replacing the frame.
Smaller infrastructure also means lower permitting requirements and a simpler installation, which on a project of this kind is often the difference between a plan and a line that actually gets built.
What it recovers
Aluminum and copper as the primary value, plus other non-ferrous fractions and a plastics stream. Purity is what determines the price, so the separation stages are specified around the grade the buyer wants rather than around throughput alone.
The fraction that still carries metal after the main pass is handled by a midlings and tailings stage, and the finer material by ASR fines processing. That is where the last few percent is recovered.

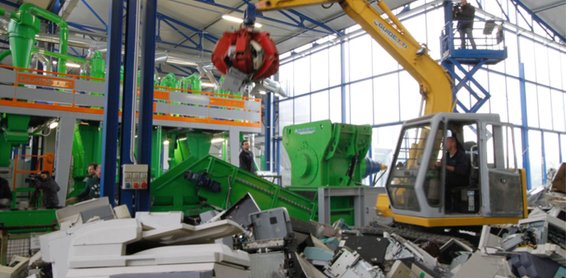

Beyond automotive
The same line handles electrical and electronic equipment waste and demolition scrap. Both behave like ASR in the ways that matter: mixed, composite, variable, and full of non-ferrous metal that a primary line cannot see.
Where a plant handles cable as well, the copper wire and cable line runs alongside and shares the same separation thinking.
Running more than one of these streams through a single line is possible but rarely optimal. The settings that suit ASR will not suit clean cable, and switching between them costs more time than most plants expect.
Dust is part of the specification
ASR is light, dry and dusty, and an ASR line without proper extraction becomes a housekeeping problem within weeks. ERS designs dust collection into the line rather than adding it afterwards, with conveyors sized so material arrives steadily rather than in surges.
That is not a minor detail on this material. More ASR projects disappoint because of handling and dust than because of separation performance.
What the business case rests on
Three numbers: the recoverable metal in the fluff, what landfill currently costs per ton, and the metal price. The first is the one nobody has, because nobody assays what goes to landfill.
ERS works through those with the plant rather than quoting a generic payback period. A figure built on somebody else's material is not a business case.
How a project starts
With a sample of the actual fluff. ERS reviews the material stream, the separation stages it needs for aluminum, copper and the other non-ferrous fractions, and the layout the building allows.
Material can be run at the ERS test facility in Atlanta before anything is specified. On ASR that step is not optional : the variability is the whole problem, and it is the only way to get a recovery figure worth building on.
Every system ERS supplies is installed, commissioned and supported by ERS, with spare parts and service from Atlanta, alongside the rest of the ERS metals processing lineup.
Talk to ERS about what is in your fluff and what it currently costs you to bury it.
