Copper Meatball & Armature

Getting the copper out of the steel

ERS Systems for Meatballs, Armatures and Motor Scrap

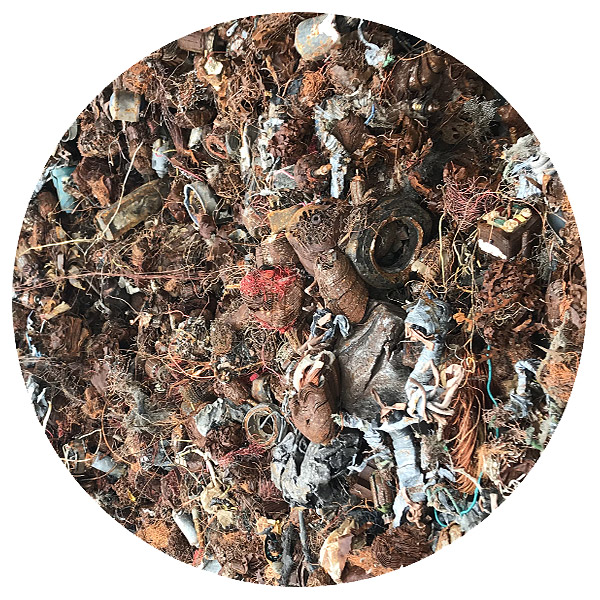

Copper meatball and armature recycling systems break open the densest, most stubborn copper-bearing scrap there is. A meatball is a tightly wound copper coil encased in steel or iron, produced by auto shredding and industrial dismantling. It is heavy, it is round, and it holds a lot of copper that ordinary shredding will not release. Engineered Recycling Systems builds the lines that do, from Atlanta.

Why meatballs resist ordinary equipment

The copper is wound, compressed and wrapped in steel. A conventional shredder flattens the mass rather than opening it, so the copper stays locked inside and leaves with the steel fraction at steel prices.

Electric motor armatures have the same problem in a more regular shape: copper windings held in a laminated steel core, often with an aluminum housing around them. Three metals, mechanically interlocked, all worth recovering separately.

How the line works

Liberation first, separation second. Controlled reduction opens the mass and frees the copper from the steel rather than simply making everything smaller. That distinction is the whole job: fragment size is a specification, liberation is the outcome that decides what you recover.

Magnetic separation then takes the ferrous fraction out, and density-based sorting splits the copper from aluminum and residual steel. Dry separation tables recover the fine fraction, which on this material is a meaningful share of the copper rather than a rounding error.

Where the feed arrives oversized or bundled, a pre-shredder handles the first stage, and hammer mills or mills take over for final sizing and liberation.

What the material is worth

Copper recovered at high purity sells as copper. Copper that stays bound in a steel meatball sells as steel, and the difference per ton is large enough that recovery rate, not throughput, is what decides whether a line pays for itself.

Motor scrap compounds this. Armature copper, the aluminum housing and the steel laminations each have a market, and a line that separates all three cleanly earns three prices instead of one mixed-grade price.

Why motors are worth more than they look

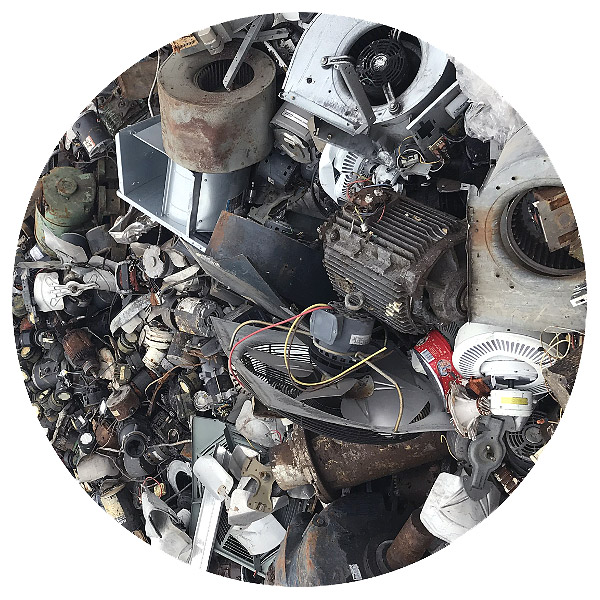

A scrap electric motor is usually bought and sold by weight as a single item, which means the buyer is pricing an average. Some motors are copper-rich, some are mostly steel, and nobody opens them to check. The operation that processes them rather than trading them is the one that finds out what was actually inside.

Large industrial motors, submersible pumps, alternators and starters all sit in this category. So do the motors that arrive attached to something else : in white goods, in HVAC units, in vehicles going through a dismantling line. A plant already handling those streams is usually sitting on more motor scrap than it realizes.

Where it fits

Most operations processing meatballs are already running other non-ferrous work. The same floor handles shredder wire, insulated copper cable, radiator separation and ASR fractions, and several of the separation stages can be shared.

ERS designs the line so stages are shared where the material allows and dedicated where it does not, which is usually what decides whether a project is affordable. The Guidetti range covers much of the granulation and separation equipment, with material moving on conveyors or through pneumatic transport between stages.

Dust and wear

Breaking meatballs generates fines carrying copper, and those fines are both a recovery opportunity and a housekeeping problem. Dust collection is engineered with the line rather than added once it is running.

This material is hard on equipment. Steel cases and laminations wear knives, hammers and screens faster than cable does, so access and change time are designed in rather than discovered in the second year.

What decides the specification

Copper content and how much it varies between loads. How much steel comes with it. Tons per hour at peak rather than average. The purity the buyer will pay for. And the floor space available, which on a shredder yard is usually the binding constraint.

Feed consistency matters as much as volume. A line fed in surges by grab behaves differently from one fed steadily, and the buffering between stages has to allow for it or the separation drifts away from where it was set.

How a project starts

With a sample. Meatball composition varies enormously depending on what the shredder was fed and how it was operated, and the copper content of motor scrap depends on its age and origin. Material can be run at the ERS test facility in Atlanta, and the recovery figures from that run are what the system is designed around.

Every line is installed, commissioned and supported by ERS, with spare parts and service from Atlanta. Where a yard also needs shears or balers, ERS supplies TAURUS scrap processing equipment alongside. Installed systems are written up under project news and system updates.

Tell us what your meatball or motor fraction looks like and what you need out of it : the contact form is the quickest route.
