Pre-Shredder
Guidetti
PMG 400
Guidetti PMG Pre-Shredders Series
Our robust and powerful PMG pre-shredders! perfectly prepare the material for further processing steps. Versatile and compact-sized units, easy to combine, complete with conveyor belt with magnetic pulley, unbeatable price-performance ratio.
Single shaft PMG series are available with various combinations of shaft, power, screen-size, magnetic separation, etc, to efficiently process different kinds of materials such as:

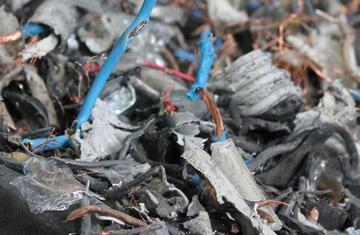

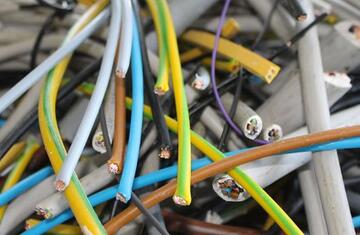

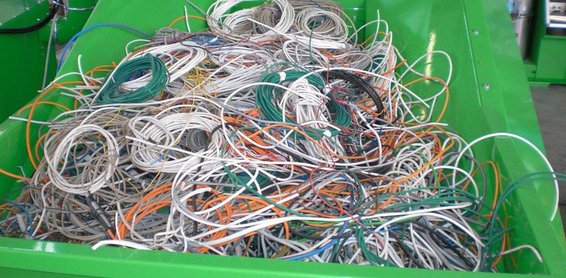

• Copper and aluminum wire and cable

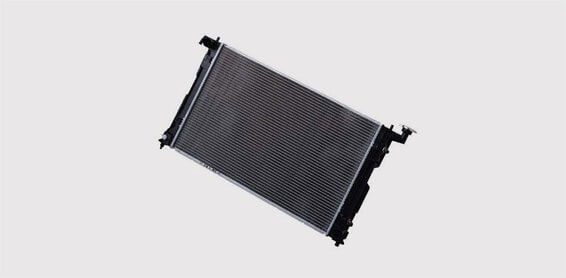

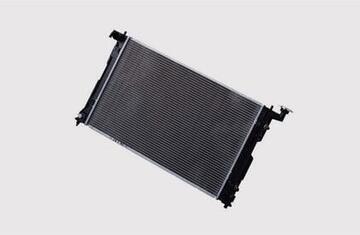

• Non-ferrous metals

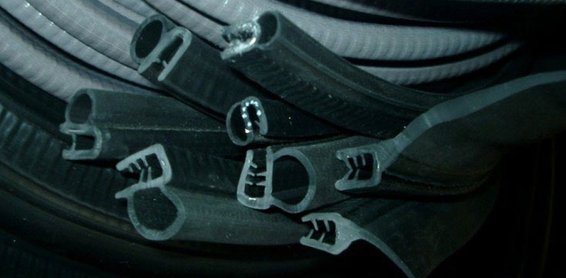

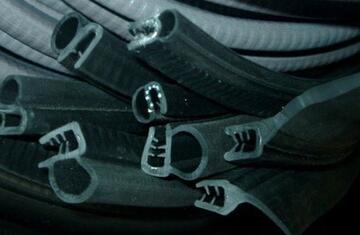

• Rubber
• Plastic
• Wood
• Composite materials
• Paper
The shredder discharge conveyor is equipped with a magnetic head pulley and can also be equipped with an optional cross belt magnet for ferrous metal extraction.

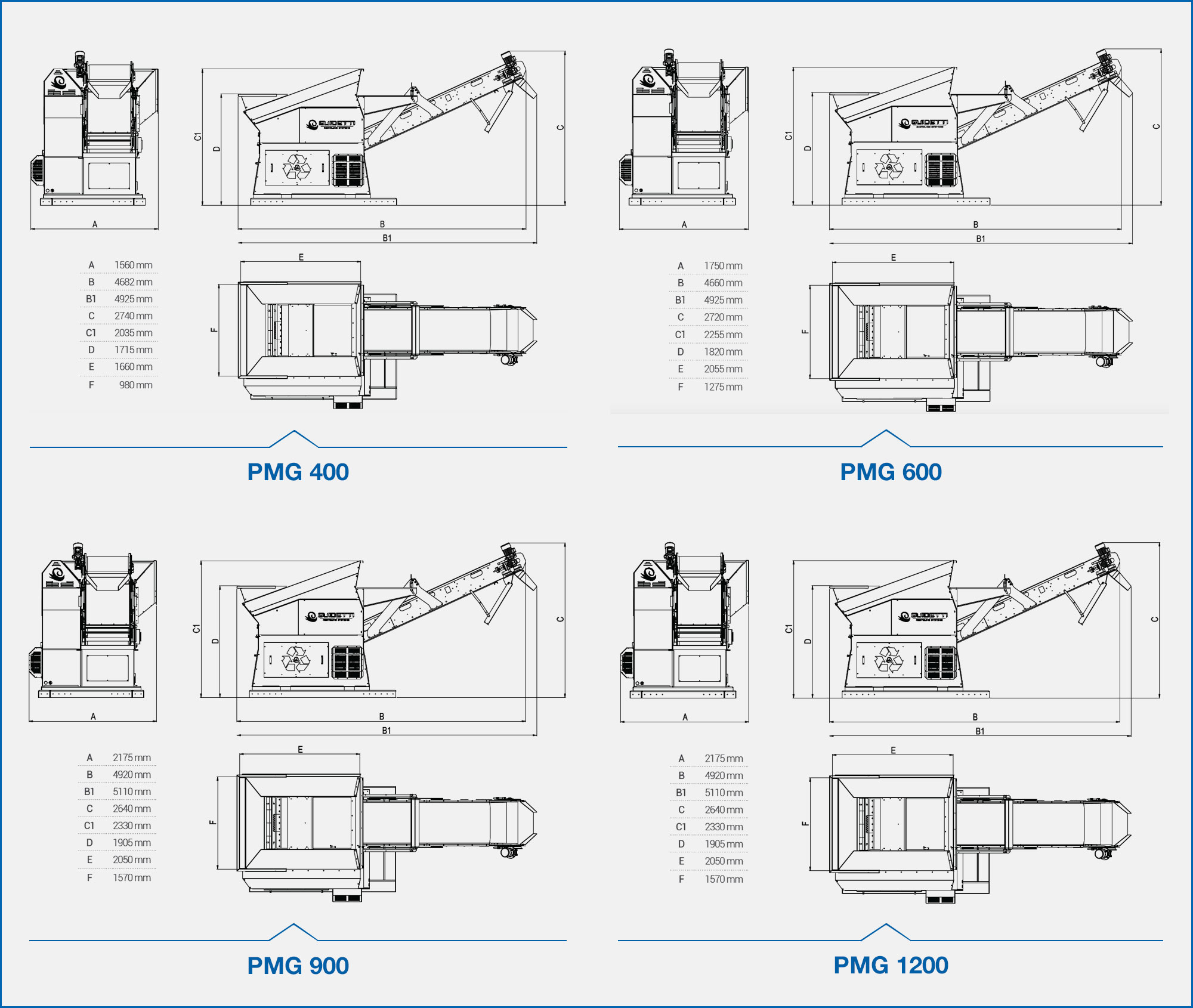

| Technical Data |
Length | Width | Height | Weight | Power | Production |
|---|---|---|---|---|---|---|
| PMG 1200 | 3,560 mm 140.2" |
2,300 mm 90.6" |
2,540 mm 100.0" |
4,450 kg 10,031 lb |
78.0 kW 104.6 HP |
kg/h |
| PMG 400 | 1,560 mm 61.4" |
4,682 mm 184.3" |
2,740 mm 107.9" |
1,420 kg 3,131 lb |
12.5 kW 16.8 HP |
kg/h |
| PMG 600 | 1,750 mm 68.8" |
4,660 mm 183.5" |
2,720 mm 107.1" |
1,840 kg 4,057 lb |
20.0 kW 26.8 HP |
kg/h |
| PMG 900 | 2,175 mm 85.6" |
4,920 mm 193.7" |
2,640 mm 103.9" |
2,100 kg 4,630 lb |
32.0 kW 42.9 HP |
kg/h |
