Guidetti Dry Separation Tables
Our Dry Separation Tabels are designed to separate material of similar size and shape with different densities.
Typical applications:

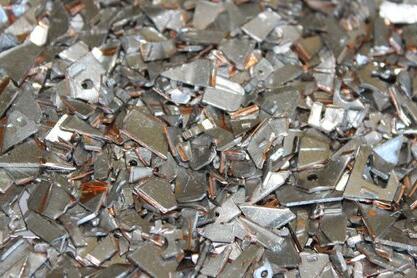

• metals from insulation

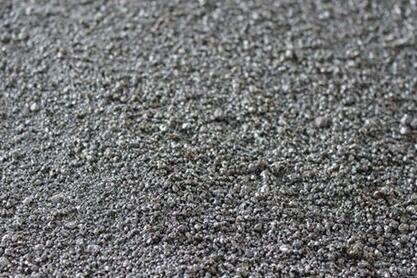

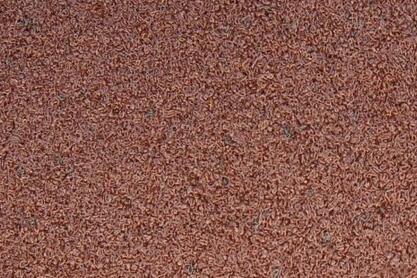

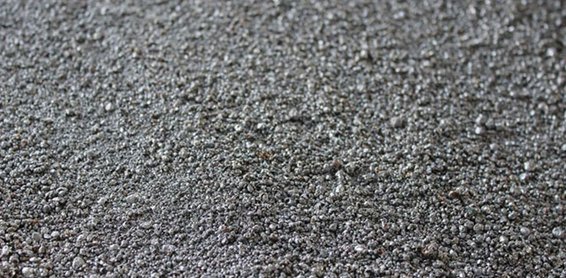

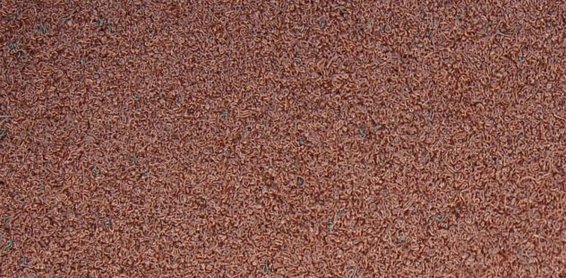

• copper from aluminum
• copper or aluminum from PVC or rubber

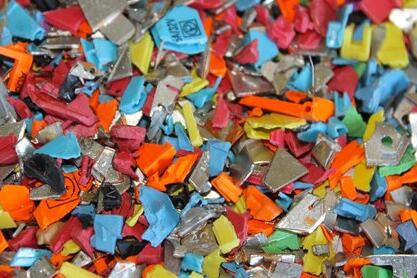

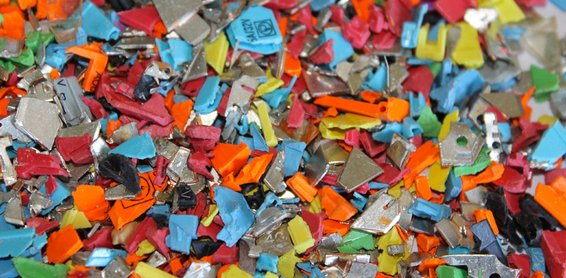

• plastics from metals, sand, stones, fibers, etc.
• wood from metals, sand, stones, glass, etc.
Robi 71
Robi 151
F15 Separator
F30 Separator
F50 Separator
F15-MT Separator

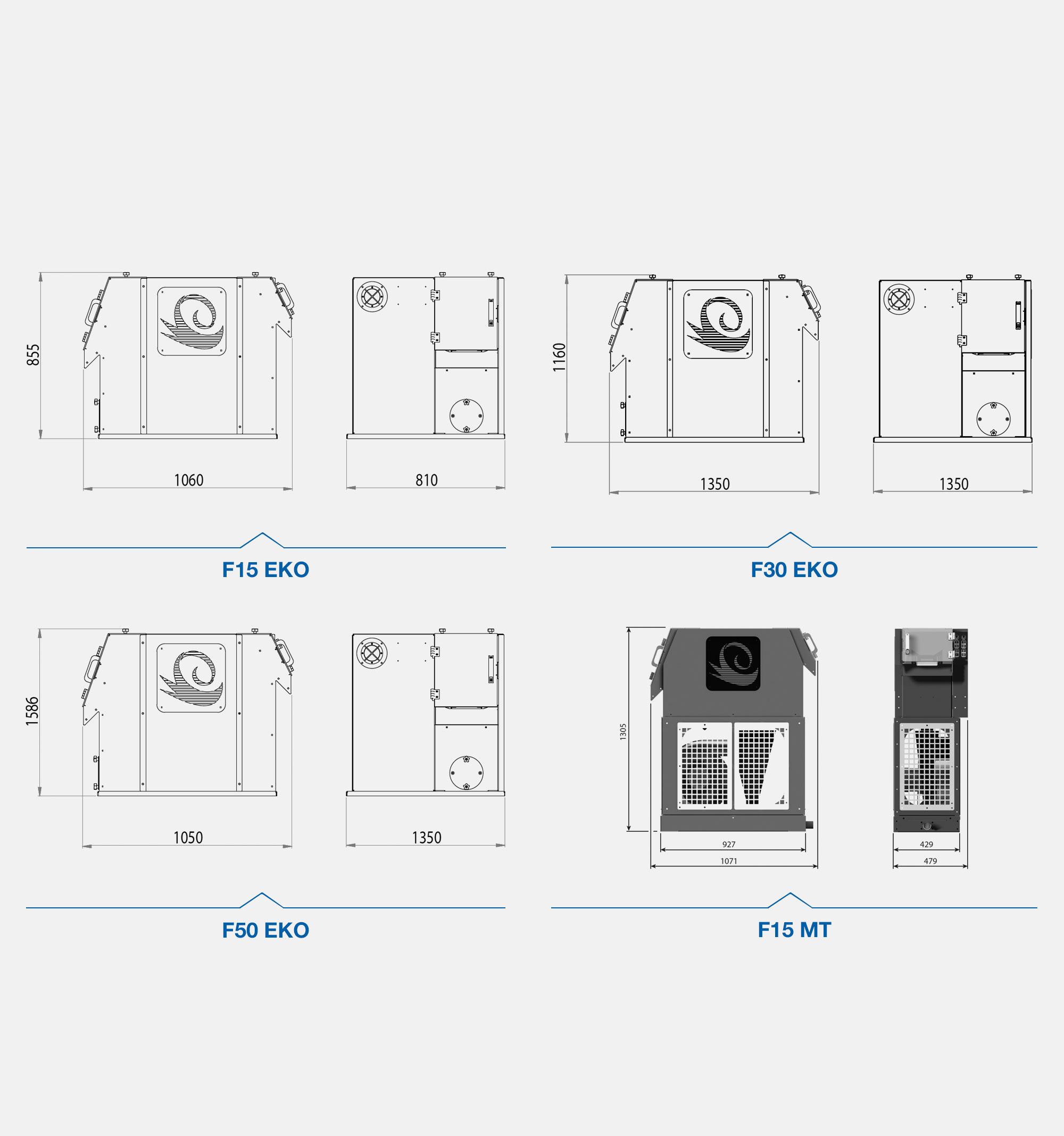

| Technical Data |
Length | Width | Height | Weight | Power | Production |
|---|---|---|---|---|---|---|
| F15 MT |
1071 mm 42.2'' |
479 mm 18.9'' |
1305 mm 51.4'' |
115 kg 254 lb |
(*) changeable according to the material processed kg/h |
|
| Robi 71 | 1930 mm 57.3'' |
1455 mm 57.2'' |
2030 mm 79.9'' |
830 kg 1830 lb |
3.5 kw 4.7 HP |
(*) changeable according to the material processed kg/h |
| Robi 151 | 2170 mm mm 85.4'' |
1860 mm 73.2'' |
2395 mm 94.3'' |
1070 kg 2359 lb |
5.0 kw 6.7 HP |
(*) changeable according to the material processed kg/h |
| F15 Eko |
1060 mm 41.7'' |
810 mm 31.9'' |
855 mm 33.7'' |
192 kg 423 lb |
0.76 kw 1.0 HP |
(*) changeable according to the material processed kg/h |
| F30 Eko |
1350 mm 53.1'' |
1350 mm 53.1'' |
1160 mm 45.7'' |
535 kg 1179 lb |
1.8 kw 2.4 HP |
(*) changeable according to the material processed kg/h |
| F50 Eko |
1050 mm 41.3'' |
1350 mm 53.1'' |
1586 mm 62.4'' |
390 kg 860 lb |
2.0 kw 2.7 HP |
(*) changeable according to the material processed kg/h |
