OMER Tritone Shredders Series

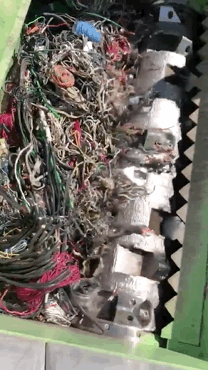

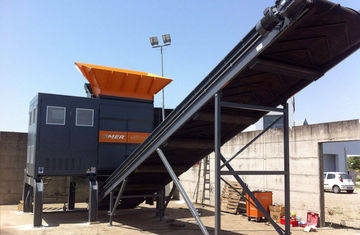

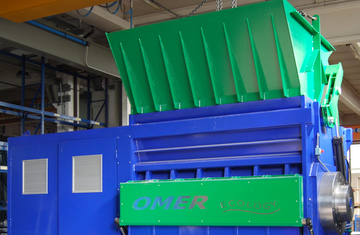

The primary single shaft shredder TRITONE is the perfect solution for the shredding and chopping of all sorts of tires, electrical cables and wires, bulky materials, copper cables and aluminum.

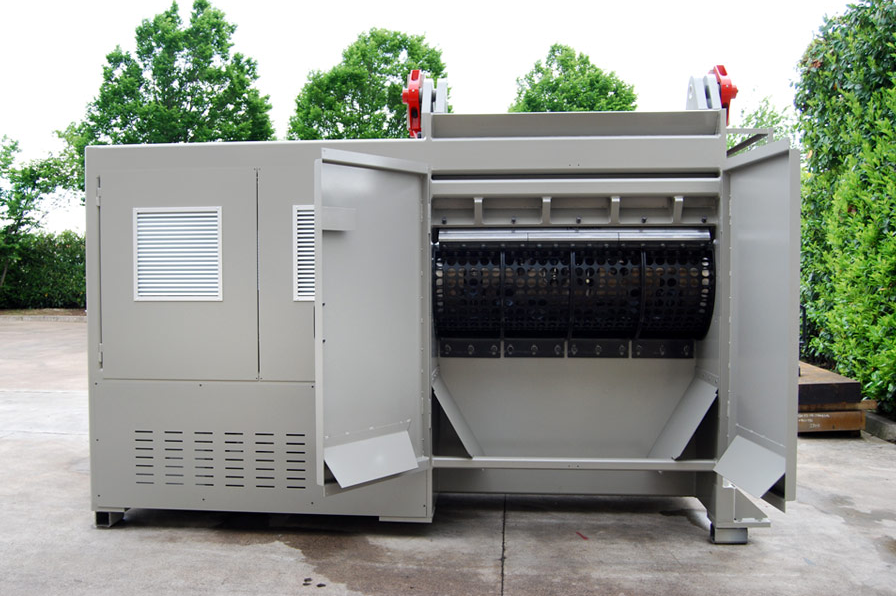

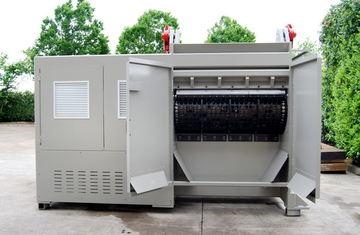

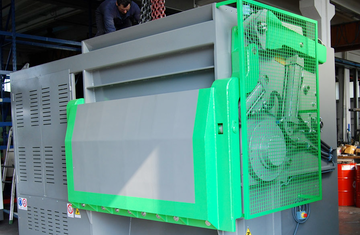

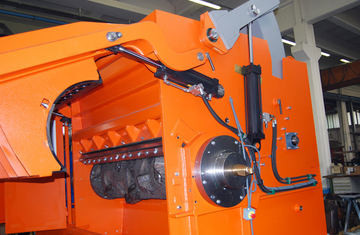

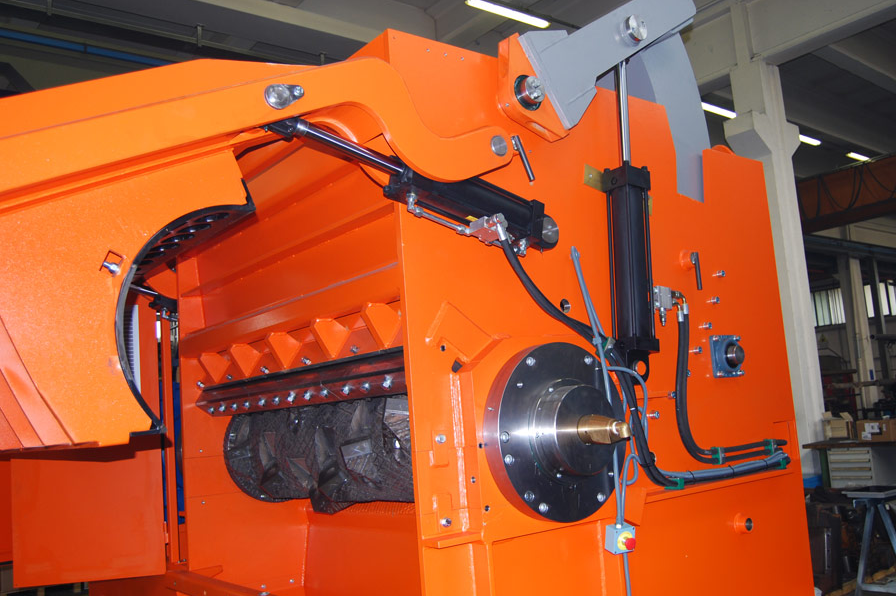

The opening and closing of the front hatchback and the blades control panel are easy to access. The power transmission can be altered to facilitate a steady working process even on very tough materials. The TRITONE Shredder has a solid structure yet the design is efficient and practical, it is easy to clean and preserve.
Technical Data TRITONE Shredders
| Rotor Length |
Number of Shafts |

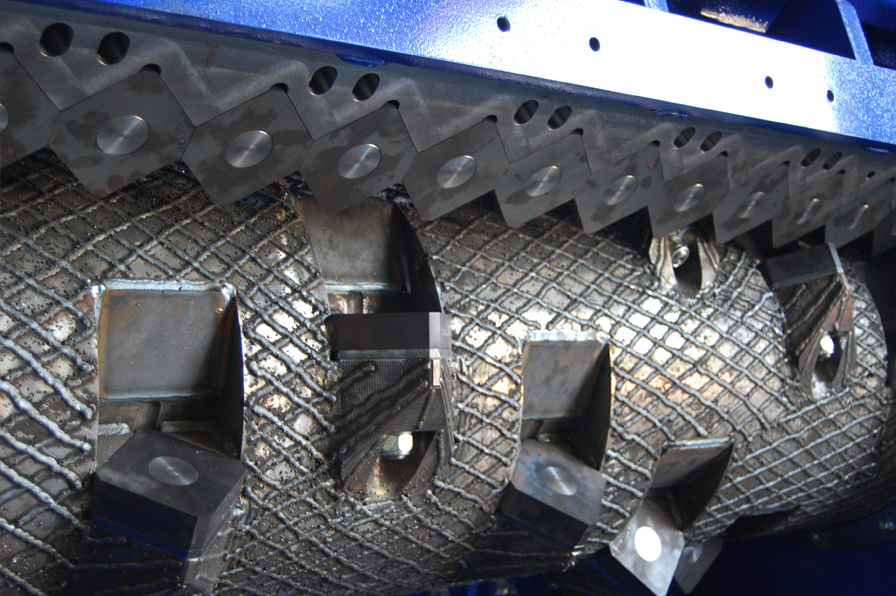

Rotor Ø |
Blades | Engine Power |
Power Source |
|---|---|---|---|---|---|
| 2,400 mm 94.48" |
1 | 460 mm 18.11" |
80/120 mm 3.14" / 4.72" |
250 kW 335.25 HP |
Electric |
| 1,100 mm 43.30" |
1 | 460 mm 18.11" |
80/120 mm 3.14" / 4.72" |
110 kW 147.5 HP |
Electric |
| 1,500 mm 59.05" |
1 | 460 mm 18.11" |
80/120 mm 3.14" / 4.72" |
132 kW 177 HP |
Electric |
| 1,800 mm 70.86" |
1 | 460 mm 18.11" |
80/120 mm 3.14" / 4.72" |
160 kW 214.56 HP |
Electric |

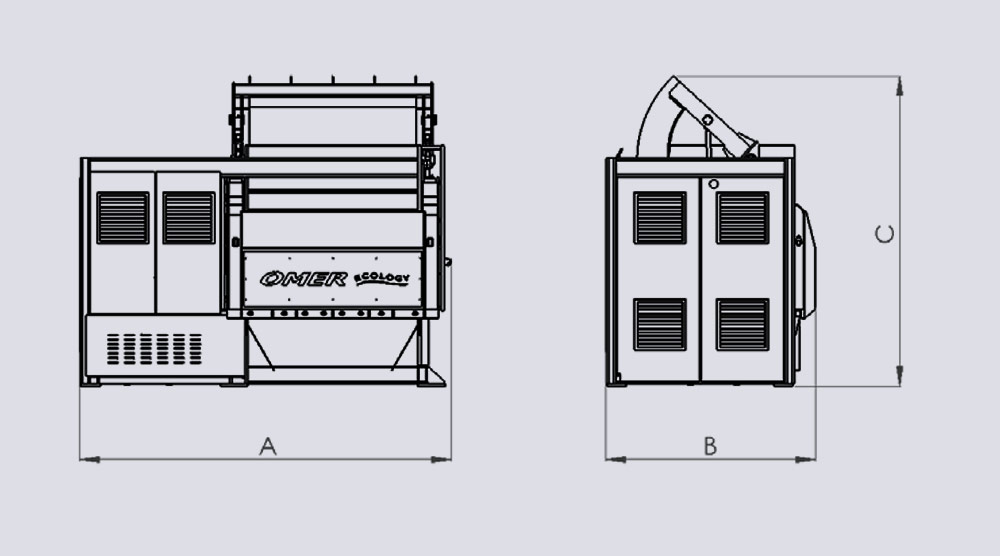

| Type | A | B | C |
|---|---|---|---|
| 2,400 | 5,325 mm 209.64" |
2,290 mm 90.16" |
3,540 mm 139.37" |
| 1,100 | 3,400 mm 133.85" |
2,290 mm 90.16" |
3,000 mm 118.11" |
| 1,500 | 3,895 mm 153.34" |
2,290 mm 90.16" |
3,200 mm 125.95" |
| 1,800 | 4,057 mm 159.72" |
2,290 mm 90.16" |
3,386 mm 133.30" |
