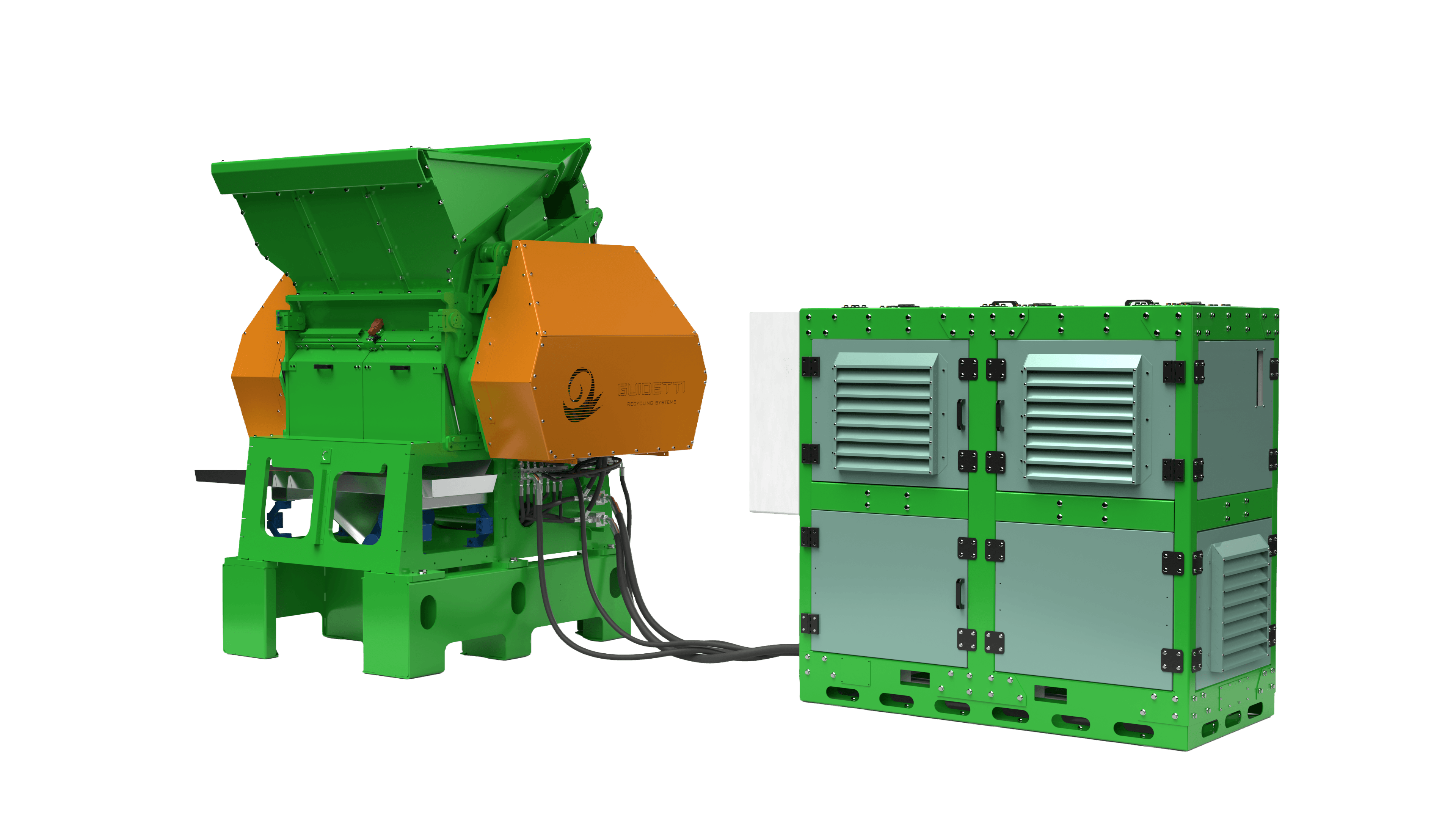

PMG 1200 Pre-Shredder for Continuous High-Volume Lines
The Guidetti PMG 1200 pre-shredder is the large-line machine in the PMG range, built for plants that run a continuous shift rather than batches. Electric cable, non-ferrous metals, composites and mixed industrial waste go in whole and come out sized for the stage behind them, at up to 3,000 kg/h. It is CE certified. Engineered Recycling Systems supplies, installs and supports it from Atlanta.
What the 1200 is for
It is the machine a plant buys when the pre-shredder has stopped being a step and become the front of the line. Everything behind it is sized off what it produces, and everything in front of it has to keep it fed.
Below it, the PMG 900, PMG 600 and PMG 400 cover intermittent work and tighter buildings. Above it, the PMG 1600 widens the rotor once more. Alongside it sits the PMG 1200 H for the hardest feed.
What 3,000 kg/h actually means
Throughput runs from 300 to 3,000 kg/h, and the spread is the honest part of that figure. Material type and configuration decide where a plant lands inside it. Clean cable and mixed contaminated scrap will not run at the same rate through the same machine.
Nobody should size a line off the top of that range. The number that matters is the one the plant's own material produces, which is why ERS runs trials before specifying anything at this size.
It is also worth separating peak rate from sustained rate. A machine will take a surge that it cannot hold all shift, and a line planned around the surge figure spends the rest of the week waiting. The sustained rate, on the plant's own material, is the number to build around.
How it cuts
Material is fed manually or by conveyor into the cutting chamber, where intermeshing blades fragment it at low speed. Low speed keeps dust and noise down and gives a uniform particle size, which matters far more than raw speed when a granulator is waiting behind it.
A conveyor belt with magnetic pulley carries the output away and pulls ferrous contamination out inline. Overband separators are available in several sizes where the ferrous load justifies one. Taking that metal out before the next machine is cheaper than taking the next machine apart.
What it feeds
The pre-shredder is stage one. Behind it sit Sincro granulation lines for cable, dry separation tables for the density split, and hammer mills where final sizing is needed.
Protecting those stages is most of the economic case for a machine this size. A granulator fed oversized material jams, wears fast and gives an inconsistent fragment. Fed a sized feed it runs at its rated throughput and its knives last, so the saving shows up in wear parts and uptime rather than in headline tonnage.
What runs through it
Copper and aluminum cable of most constructions. Rubber, plastics, wood, paper and composite scrap. E-waste too bulky to go straight into a precision machine, and mixed industrial feedstock that arrives in whatever shape the last process left it.
The common factor is size and resistance rather than material type. If it is too big, too tough or too tangled for the next machine, it goes through a pre-shredder first.
Plants running several of these streams through one machine usually gain more from sorting at the infeed than from a larger machine. What a pre-shredder cannot do is make an unsorted pile behave like a sorted one.
Where it fits in a line
ERS integrates the 1200 with conveyors, granulators, air separation and dust extraction so the stages balance. A pre-shredder that outruns the granulation behind it does not raise output, it just moves the bottleneck somewhere harder to see.
At this capacity the handling either side usually decides the real throughput. Material arriving in surges, or a discharge that backs up, costs more over a year than the difference between two machine sizes. That is the part of a project worth arguing about, and it is the part that gets least attention.
Maintenance
Easy-access panels and a rotary valve system keep material moving and make inspection straightforward. Sealed bearings, reinforced housings and an operator-level control interface suit continuous duty with minimal supervision.
Blades and screens are consumables. What decides their real cost is how long the line stands still while they are changed, which is why access is designed in rather than worked around. On a machine running a full shift, an hour saved on a blade change is an hour of production.
How a project starts
With the material. ERS looks at what arrives, in what volume, what has to be recovered and the building it has to fit inside. Material can be run at the ERS test facility in Atlanta before anything is specified, and on a machine at this capacity that step pays for itself.
Every machine ERS supplies is installed, commissioned and supported by ERS, with spare parts and service from Atlanta. The full Guidetti range sits alongside the rest of the ERS metals processing equipment.
Talk to ERS about what you are feeding and what the next machine needs to see.
